Split OD Mount Hydraulic Pipe Cutting Machine With CE / ISO Approved

  • 1
  • 2
  • 3

Brand Name : NODHA

Model Number : AODH-660

Certification : CE,ISO

Place of Origin : WUXI

MOQ : 1 SET

Price : Negotiation

Payment Terms : L/C, T/T, T/T, Western Union

Supply Ability : 500 SETS/ YEAR

Delivery Time : 5-7 Working Days

Packaging Details : Shrink-wrapped machine body inside, exporting plywood case outside, one set each plywood case.

Drive : Hydraulic Driven

Power Supply : 2-60L per minute@12.5Mpa

Working Range(OD) : 20"-26"(508-660mm)

Wall Thickness : ≤30mm

Working Weight : 96kgs

Package Size : 1050*1050*330mm

Mounting Method : Split OD Mount

Color : Customized

Standard Bevel angle : 0°,30°,37.5°

Name : pipe cutting beveling machine

Contact Now

Features of pipe cutting beveling machine

Split OD Mount Hydraulic Pipe Cutting Machine With CE / ISO Approved

Application of pipe cutting beveling machine

  1. Oil & Gas File
  2. Power Plant
  3. Nuclear Power Plant
  4. Process Plant & Fabrication
  5. Ship Building & Repair

Specification of pipe cutting beveling machine

  1. Drive Options: Pneumatic, Hydraulic, and Electric
  2. Air requirement: 1500L-3000L /Min@0.6/0.7Mpa
  3. Hydraulic requirement: 2-60L per minute 12.5Mpa
  4. Electric requirement:220-240V 1PH 50/60HZ
  5. Feed rate: Fixed 0.08mm per circle

Selection Guide

Split OD Mount Hydraulic Pipe Cutting Machine With CE / ISO Approved

Model Working Range (OD) d (mm) D(mm) L (mm)
Inch mm
168 2”-6” 50-168 185 512 178
230 3”-8” 80-230 236 564 178
275 5”-10” 125-275 283 612 178
325 6”-12” 168-325 334 665 178
377 8”-14” 219-377 386 719 178
426 10”-16” 273-426 438 776 180
457 12”-18” 300-457 469 807 180
508 14”-20” 355-508 518 862 190
560 16”-22” 400-560 570 910 190
610 18”-24” 457-610 618 960 190
660 20”-26” 508-660 670 1020 190
715 22”-28” 550-715 719 1084 190
762 24”-30” 600-762 770 1134 190
830 26”-32” 660-813 830 1194 192
914 30”-36” 762-914 924 1296 212
1066 36”-42” 914-1066 1077 1468 212
1230 42”-48” 1066-1230 1248 1646 212

Suggest: size 1066 and above size select and use hydraulic type

Order Guide

Before you place order to us, please let us know the following information:

  1. Choose suitable Model

  2. Confirm electric power supply ( Voltage, frequency and phase)

  3. Confirm the beveling angel needed

  4. Confirm the welding joint required (U, V, Double V or Compound preparation)

  5. Advise your pipe material ( Carbon steel, stainless steel or others)

  6. Other special demands about machine

  7. If the pipe wall thickness more than 30mm, inform us in advance (Important)

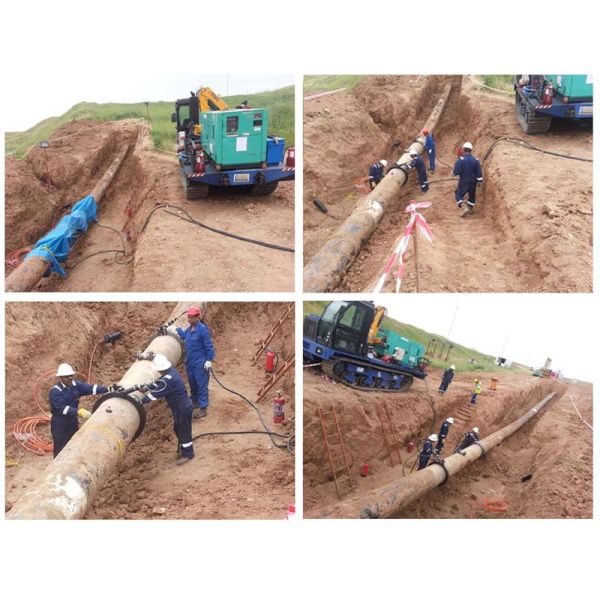

Working On Site

Split OD Mount Hydraulic Pipe Cutting Machine With CE / ISO Approved

Exhibition

Split OD Mount Hydraulic Pipe Cutting Machine With CE / ISO Approved

Certification

Split OD Mount Hydraulic Pipe Cutting Machine With CE / ISO Approved

After-Sale Service

1. Warranty period: 12 months

2. Emergency spare parts required dispatched within 24 hours
