Portable Mechanical Lightweight Hydraulic Flange Spreaders

Nodha Industrial Technology Wuxi Co., Ltd
Contact Now

Portable Mechanical Lightweight Hydraulic Flange Spreaders

  • 1
  • 2

Brand Name : NODHA

Model Number : LFSH-14

Certification : ISO

Place of Origin : CHINA

MOQ : 1 set

Price : Negotiation

Payment Terms : T/T,

Supply Ability : 500 sets per year

Delivery Time : 5-8 work days

Packaging Details : case

Model No. : LFSH-14

Max. spreading force : 8

Tip clearance(mm) : 6

Max spread(mm) : 81

Type : Mechanical

Oil capacity(cm') : N/A

Weight : 9.3kg

Contact Now

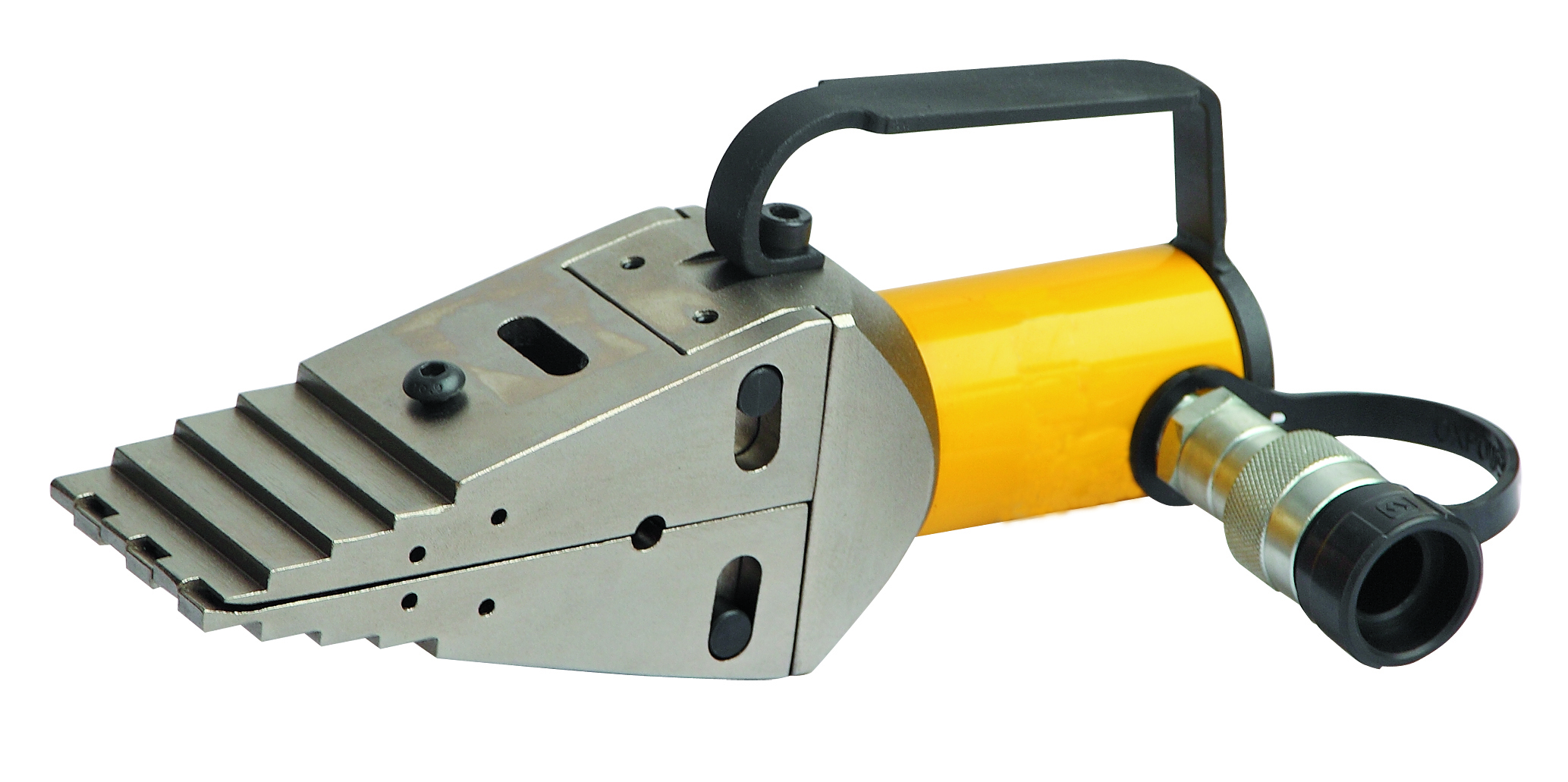

LFSH-14 Hydraulic Flange Spreaders lightweight

Hydraulic Flange Spreader

For maintenance, commissioning, shutdowns, testing and valve change outs.
No need for hammers, chisels, slings or chain blocks.
Integrated wedge concept:friction-free, smooth and parallel wedge movement
eliminates flange damage and risk of spreading arm failure.
Unique interlocking wedge design No first step bending risk.
Requires very small access gap of only 6mm.
LFSH-14 is can be used with a bolting tool pump or in a set including the
spreader, hand pump, hose, gauge and adapter.

SPECIFICATION

Model No. Max. spreading force(ton) Tip clearance Max. spread(mm) Type Oil capacity(cm') Weight(kg)
LFSM-8 8 6 81 Mechanical N/A 6.5
LFSH-14 14 6 81 Hydraulic 78 9.3

Portable Mechanical Lightweight Hydraulic Flange Spreaders
Portable Mechanical Lightweight Hydraulic Flange Spreaders
